4.3inch 480x272 rgb high brightness tft lcd display

FOB Reference Price:Get Latest Price
$8.00 - $30.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Kingtech
Model Number:
PV043WQ-CTNC4001
Display Size:
4.3
Viewing Angle:
12 O' clock
Resolution:
480RGB*272DOTS
touch panel:
Resistive and Capacitive touch panel
Driving IC:
HX8257A
Can be customized:
OEM and ODM welcome
Experience:
more than 13 years professional touch screen manufacturer
Active Area(mm):
95.05(H)*53.86(W)
Interface:
24-Bit Parallel RGB
Product range:
1.44 inch to 10.2 inch lcd module
brightness:
800nits; sunlight readable
Supply Ability
Supply Ability:
8000000 Piece/Pieces per Month own backlight;display module assembly and capactive touch panel
Packaging & Delivery
Packaging Details
Safey package Plastic trays inside 2 layes of cartons outdoor lcd display rgb 24 bit lcm 4.3 inch lcd
plastic tray safe packagae for oversea shipment
Port
Hongkong/Shenzhen

800nits 4.3inch 480x272 rgb high brightness tft lcd display

Product Details

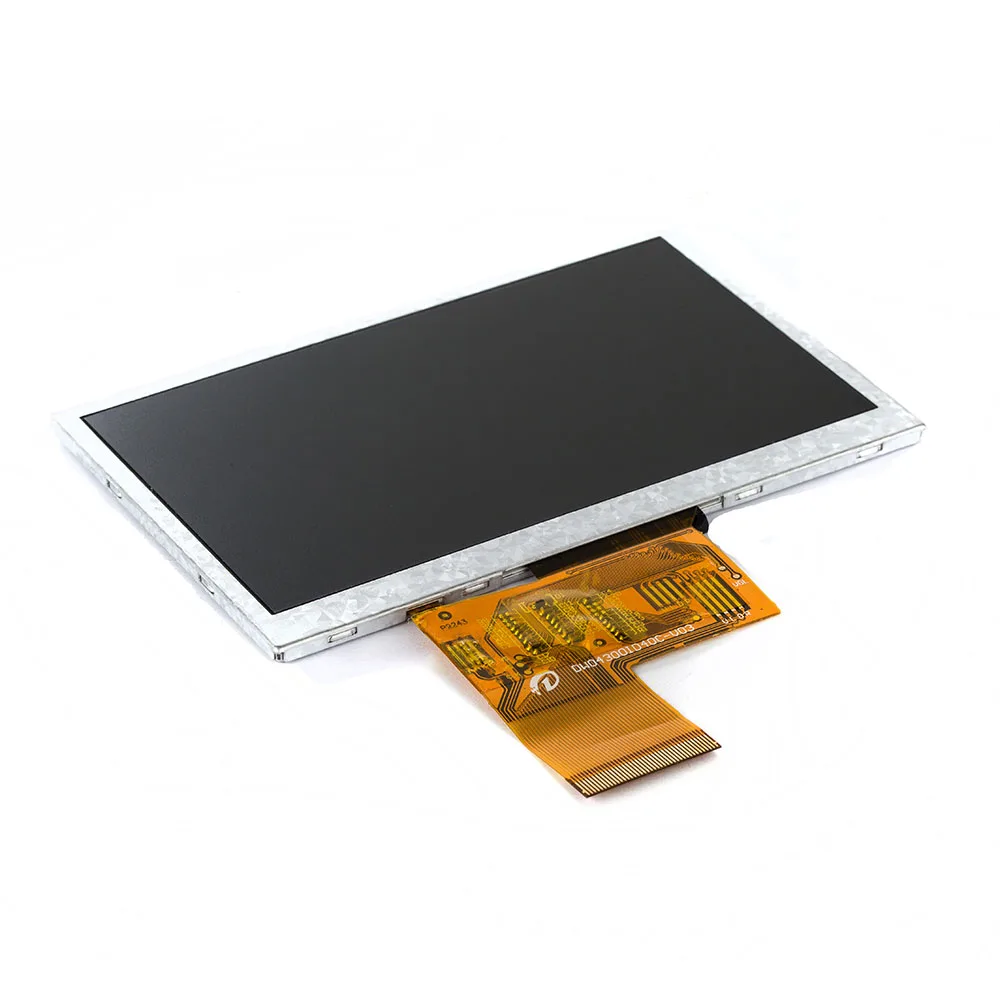

1-lcd module.jpg

Main Parameters:
Item TFT LCD MODULE 4.3 inch
Model NoPV043WQ-CTNC4001
Resolution 480RGB*272 DOTS
Outline Dimension 105.5(H)*67.1(W)*2.95 (T)(Exclude FPC)
Active Area(mm)95.05(H)*53.86(W)
Interface 24-Bit Parallel RGB
Viewing Angle12 O’ clock
LED Numbers White LED*16
LED life20000h
Warranty12 months
Driving IC HX8257A
Display Mode TFT/Transmissive
Technology Type  a-Si TFT active matrix
Pixel Pitch (mm) \
Pixel Configuration RGB-stripe
Surface treatment:  Anti-Glare
FPC type Solder type
Operating   Temperature -20~70
Storage Temperature -30~80
Aspect Ration\
Response time\
Color Depth 16.7M
Brightness800 cd/m2
Resistive touch panel/ Demo board / Driver board is available for your option.



800nits 4.3inch 480x272 rgb high brightness tft lcd display ; sunlight readable

resistive and capacitive touch panel available for option

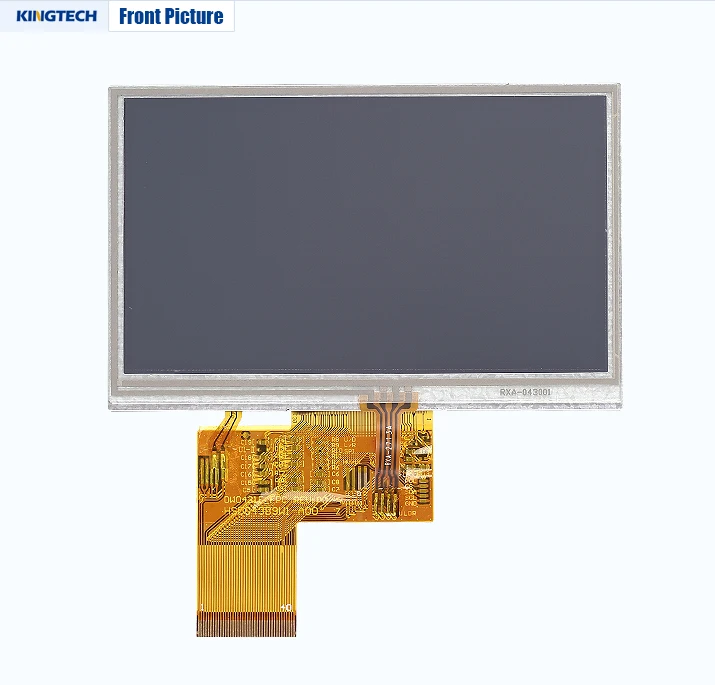

front picture.jpg

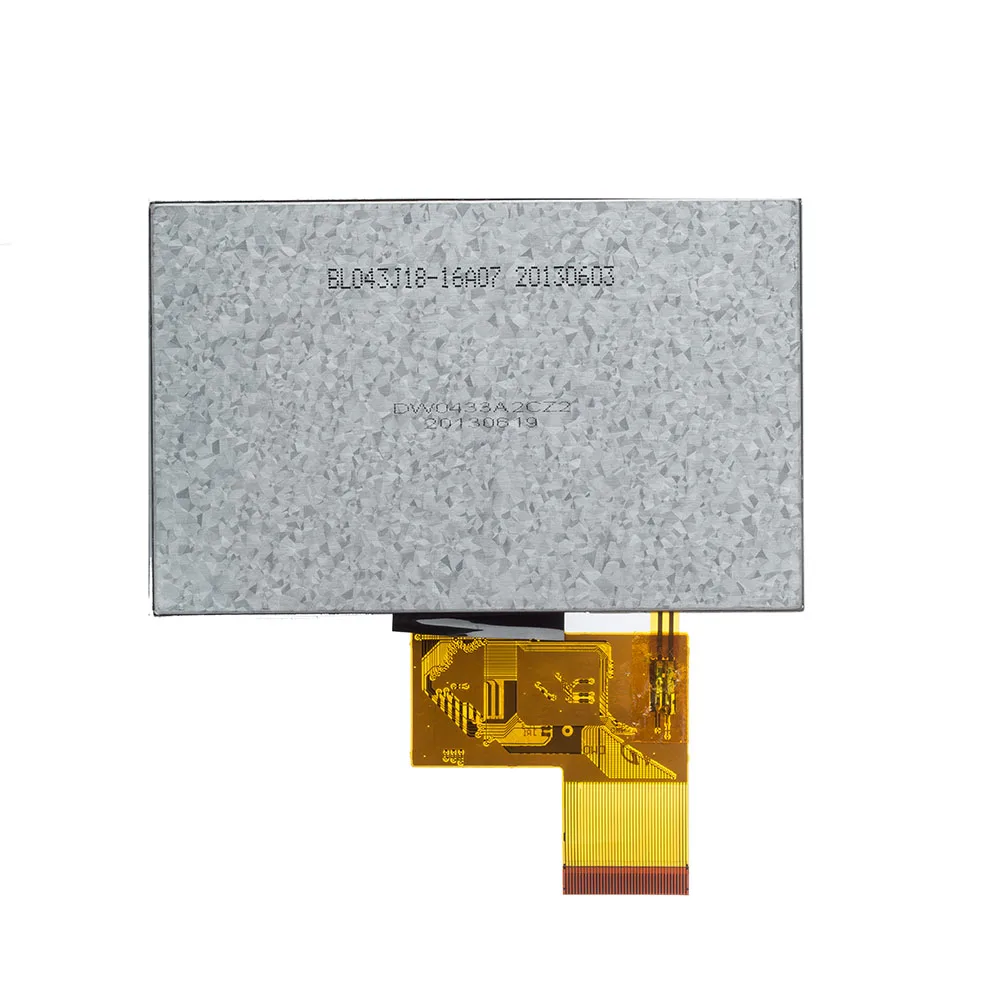

DW0433A2CZ .JPG

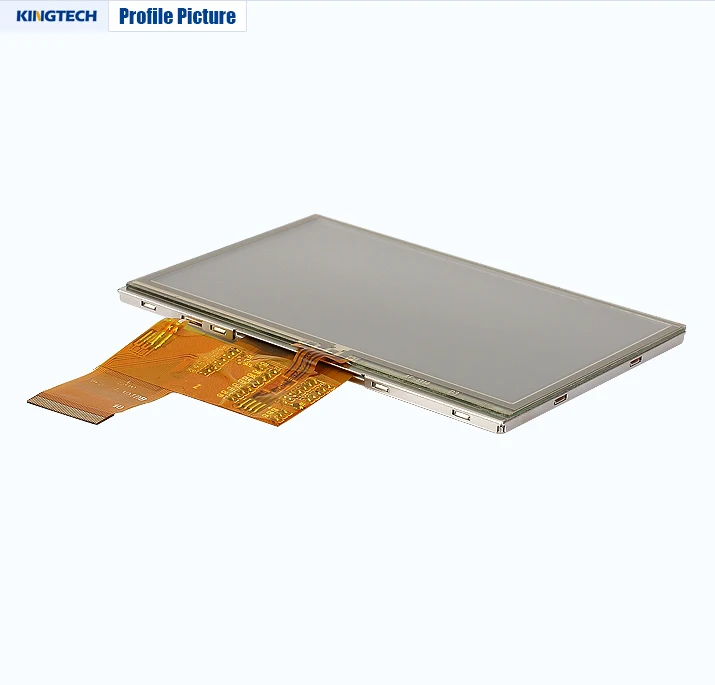

profile picture.jpg





DW0433A2CZ .JPG

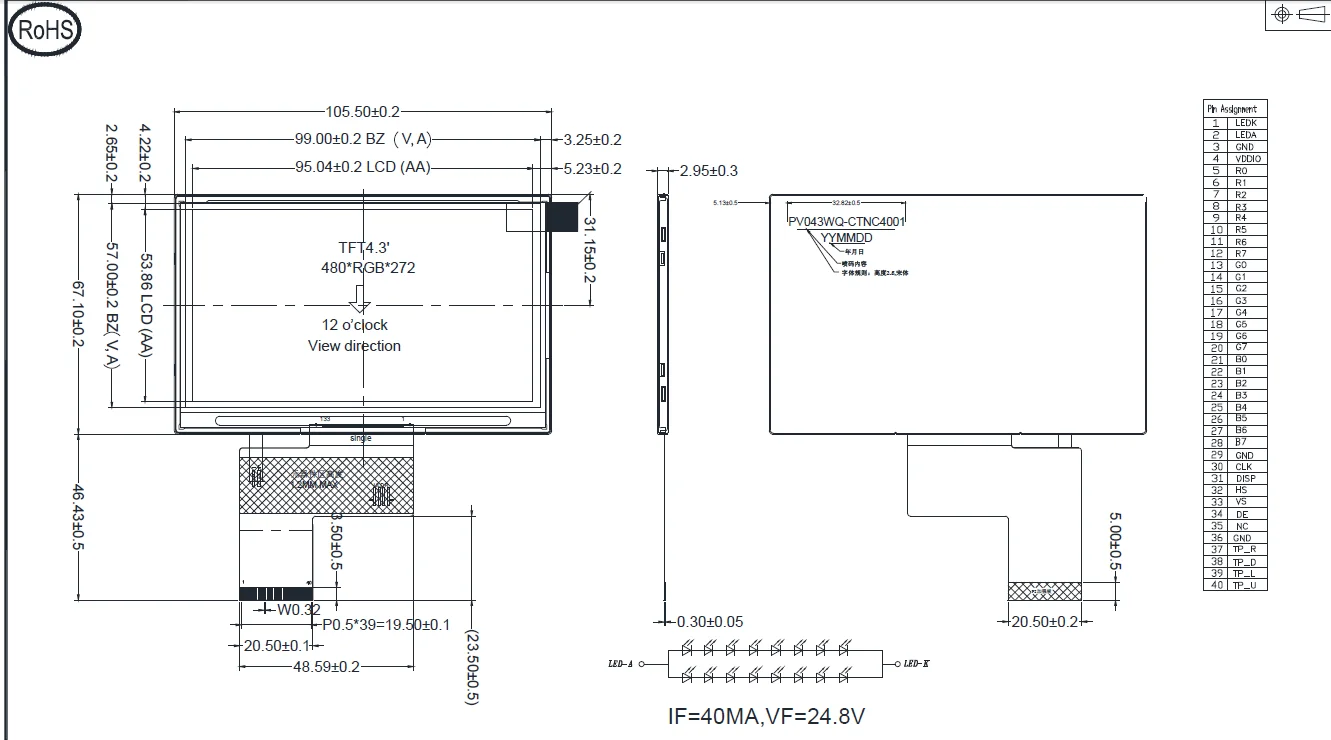

4.3inch 480x272 rgb high brightness tft lcd display Machanical Drawing:





4.3inch lcd  Similar products , please click below Model No to review product details



Size and FeatureModel NoPixelOutline DimensionTP
4.3" IPS displayPV0430I3CZ0480x800105.90(H)*62.46(v)*2.2(T)RTP
4.3" 350 brightnessDW0436F3CZ480X27267.2(H)*105.5(W)*3.0(T)RTP
4.3 " 800 brightnessDW0436F5CZ480x27267.15(H)*105.4(W)*2.95 (T)RTP
Remark: All models can be customized according to customer requirements
                 click on the product model No , for more product details
Our Advantage

2-lcd screen.jpg

With Customers

7-with customers.jpg



800nits 4.3inch 480x272 rgb high brightness tft lcd display

Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production.  Semi-automatic line for sample making and small order assembly.

We can handle sample and small orders flexibly.  We don't have strict MOQ requirement.  Thousand class cleaning room to  assemble backlight and FOG

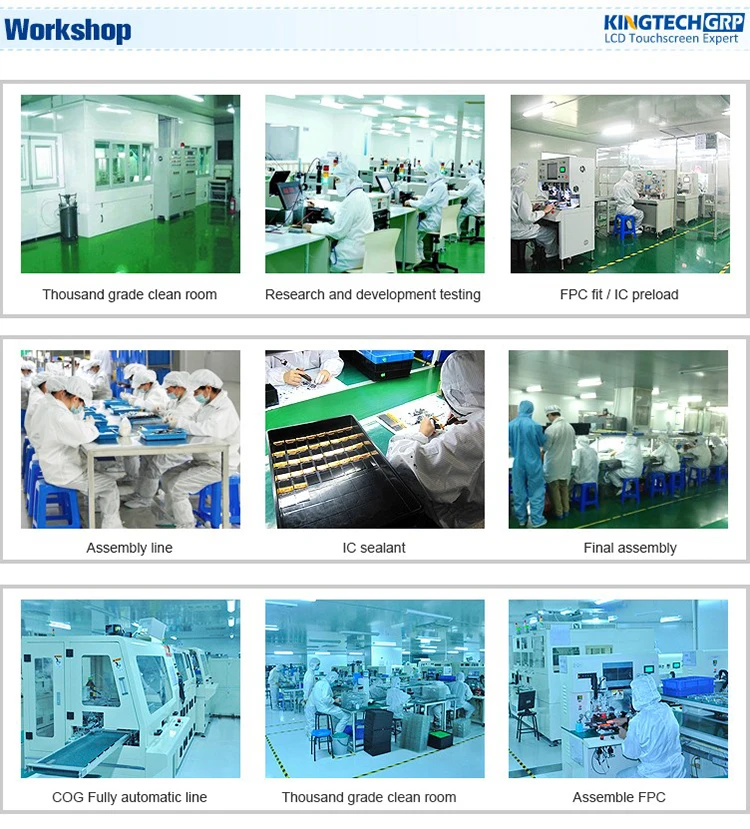

Workshop

5-lcd workshop.jpg

800nits 4.3inch 480x272 rgb high brightness tft lcd display

For every new model, before mass production, we do reliability test to ensure our material choice and our workmanship are designed properly.

This can help to avoid reliability issues happening at our customer side


Other Products

4.3 inch monitor



ther product products, please click below Model No to review product details



Size and FeatureModel NoPixelOutline Dimension
1.3'' Round AMOLEDPV013002T45B360*36035.34(W)*36.84(H)*0.678(T)
1.39"Round AMOLEDPV013901PY20B400*400  38.6 (W)×40.5(H)×0.7(T)
2.4" IPS TFT LCDPV0241F2CZ0_V00240*32042.72(W)*60.7(H)*2.21(T)
3.34'' Round TFT LCDPV033400AR17A320*32066.20(W)×69.30(H)×2.66(T)
3.5" IPS/Free viewing anglePV0350B2Z10320*48053.76(W)*84.18(H)*3.30(T)
3.5" 480*640 TransflectivePV03501LZR40C480*64063.00(W)×85.00(H)×2.9(T)
4.0" IPS/Free viewing anglePV0401FT25B480*80057.14(W)* 96.85(H) *1.93(T)
4.3" high brightnessPV043WQ-CTNC4001480*272105.5(W)*67.1(H)*2.95 (T)
4.3"  IPS/Free viewing anglePV04300FT40C480*80061.46(W)*104.75(H)*2.20
5.5''  IPS/Free viewing anglePV05502FT39D720*128076.8(W) * 137.4(H) * 2.7(T)
10.1" 1000nits IPS/free viewingPV10101LZR40B-C1280*800229.80(W)*149.00(H)*5.95(T)
RemarkODM and OEM are welcome
