1000 nit 40 pin 10.1 inch 1280x800 USB capacitive touch screen

FOB Reference Price:Get Latest Price
$70.00 - $150.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Kingtech
Model Number:
PV10101LZR40B-C
Type:
Lcm
resolution:
1280*800
touch panel:
I2C and USB capacitive touch panel available
Brightness:
250/450/600/1000nits
viewing direction:
free viewing angle/all
Can be customized:
OEM and ODM welcome
experience:
TFT LCD display manufacturer since 2003
outline dimension:
229.80*149.00*5.95
AA:
216.96*135.60
production capacity:
800K/M
interface:
LVDS
Supply Ability
Supply Ability:
800000 Piece/Pieces per Month about 500 workers
Packaging & Delivery
Packaging Details
Kingtech is a high standard LCD module supplier and manufacturer, and we have been in this field since 2003 . We provide 1.22 ~10.1 inch LCD module
Plastic tray for safe oversea shipment
Do drop test and viberation test when we designed the package
Port
Shenzhen/Hongkong
Lead Time :
4 weeks



ips touch screen320x240 tft lcd display 2.4

1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen

key mechanical data  :

Main Parameters:
  Item   kingtech 10.1 inch ips1280(RGB0*800 display
  Model NoPV10101LZR40B-C
  Resolution 1280(RGB0*800
  Outline Dimension 229.80*149.00*5.95
  Active Area(mm)216.96*135.60
  Interface LVDS
  Viewing AngleALL
  LED Numbers /
   LED life/
  Warranty12 months
  Driving IC /
  Display Mode Transmissive
  Technology Type RGB Stripe
  Pixel Pitch (mm) 0.1695(W)×0.1695(H)
  Pixel Configuration /
  Surface treatment: /
  FPC type/
  Operating Temperature 0 to +50℃
  Storage Temperature -20 to +60℃
  Aspect Ration/
  Response time25ms
  Color Depth 16.7M
  Brightness1000



1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen  with I2C  and USB capacitive touch panel

Sunglight readable 250/450/600/1000 nits for option

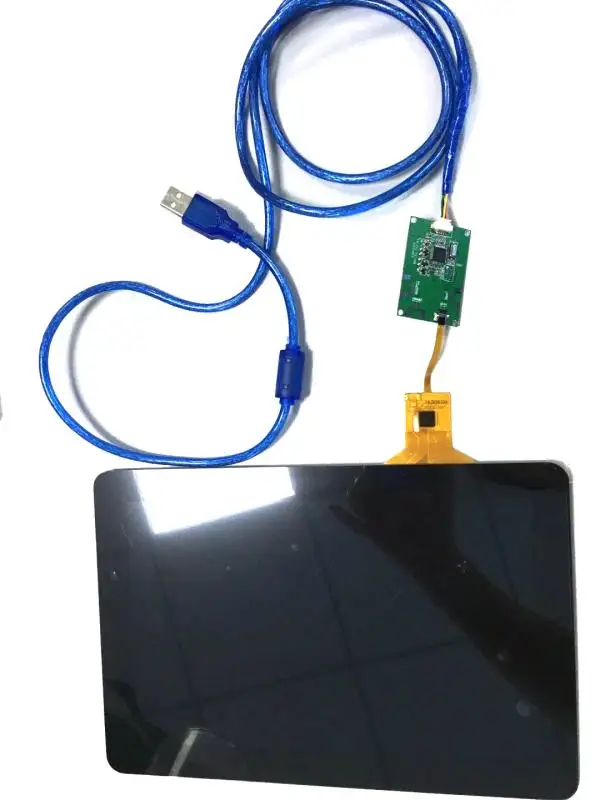

1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen  with USB  capacitive touch panel:

10.1 inch USB interface.jpg

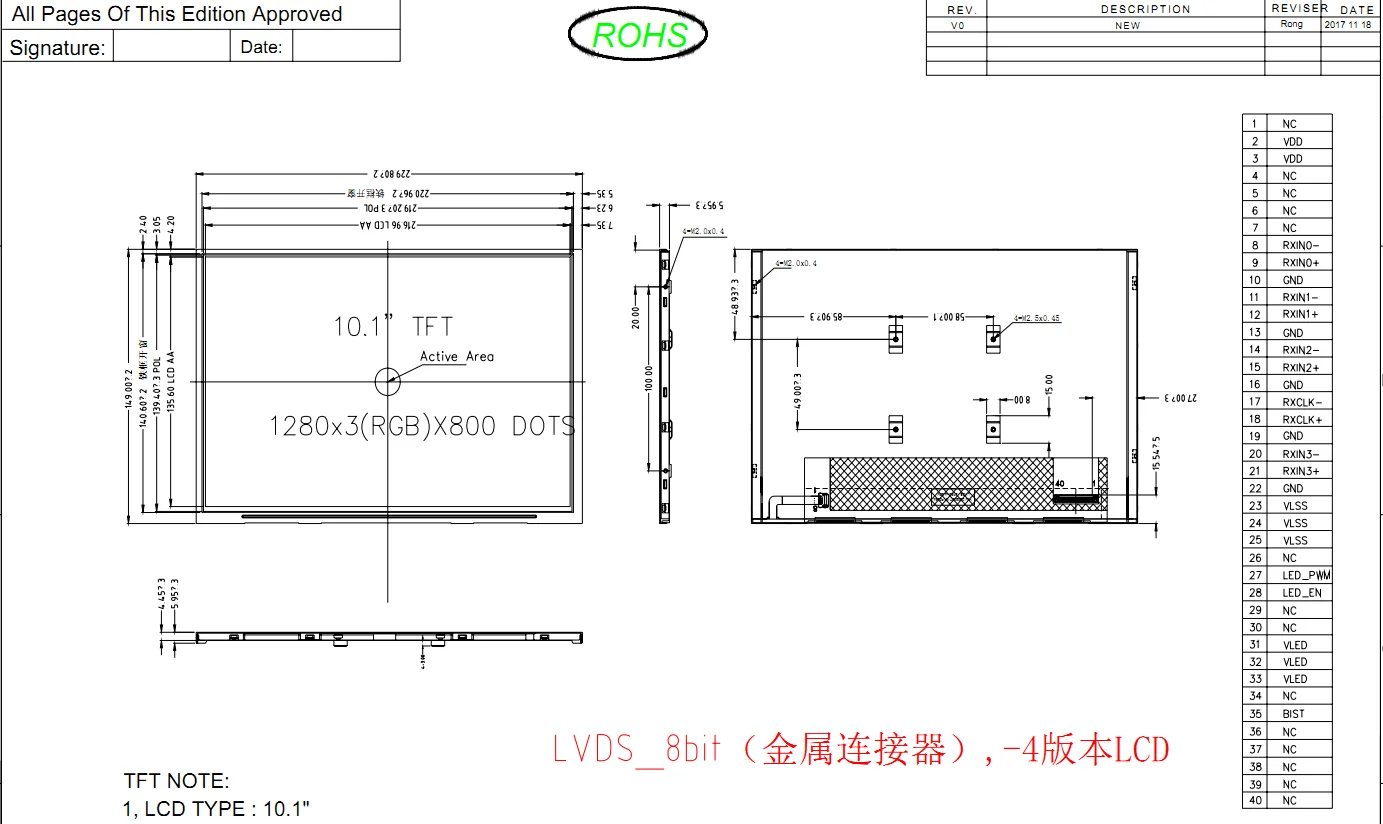

1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen mechanical drawing:

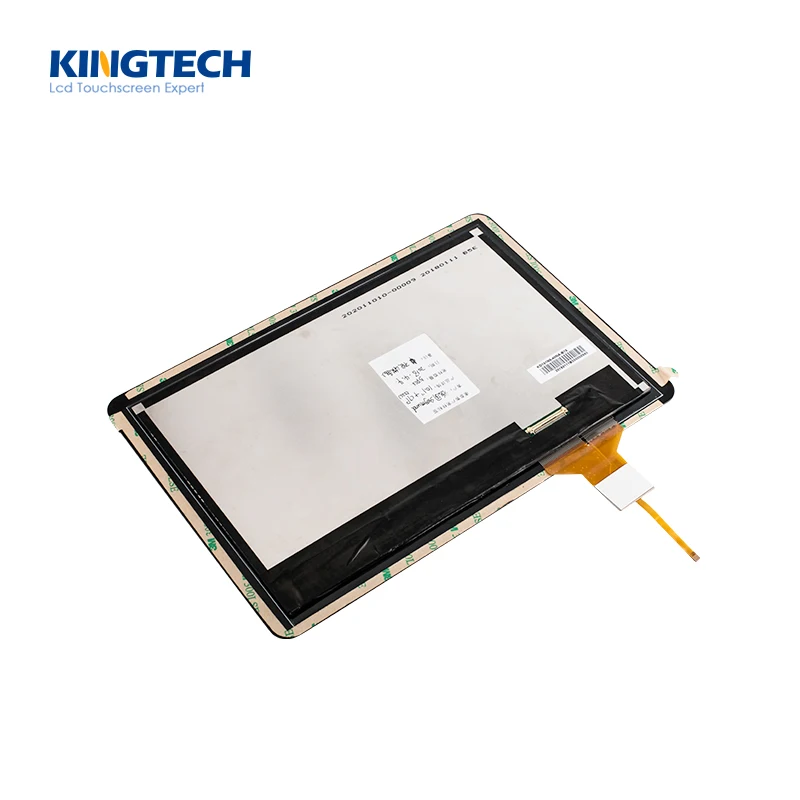

1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen  with  capacitive touch panel:

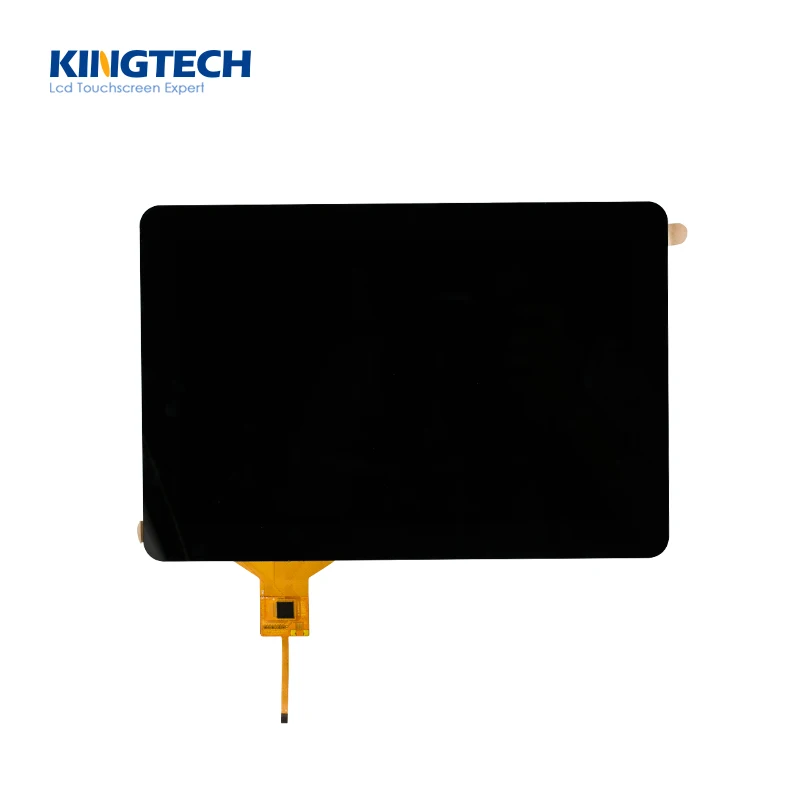

1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen  with  capacitive touch panel:



Similar products, please click below Model No to review product details



Size and FeatureModel NoPixelOutline DimensionTP
10.1 " lcdDW101DX40B1024*600235(W)*143(H) *5(T)CTP
10.1" 1000nits IPS
Free viewing
PV10101LZR40B-C1280*800229.80(W)*149.00(H)*5.95(T)CTP
RemarkODM and OEM are welcome



1000 nit 40 pin 10.1 inch IPS 1280x800 capacitive touch screen  with  capacitive touch panel:

Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production.  Semi-automatic line for sample making and small order assembly.

We can handle sample and small orders flexibly.  We don't have strict MOQ requirement.  Thousand class cleaning room to  assemble backlight and FOG

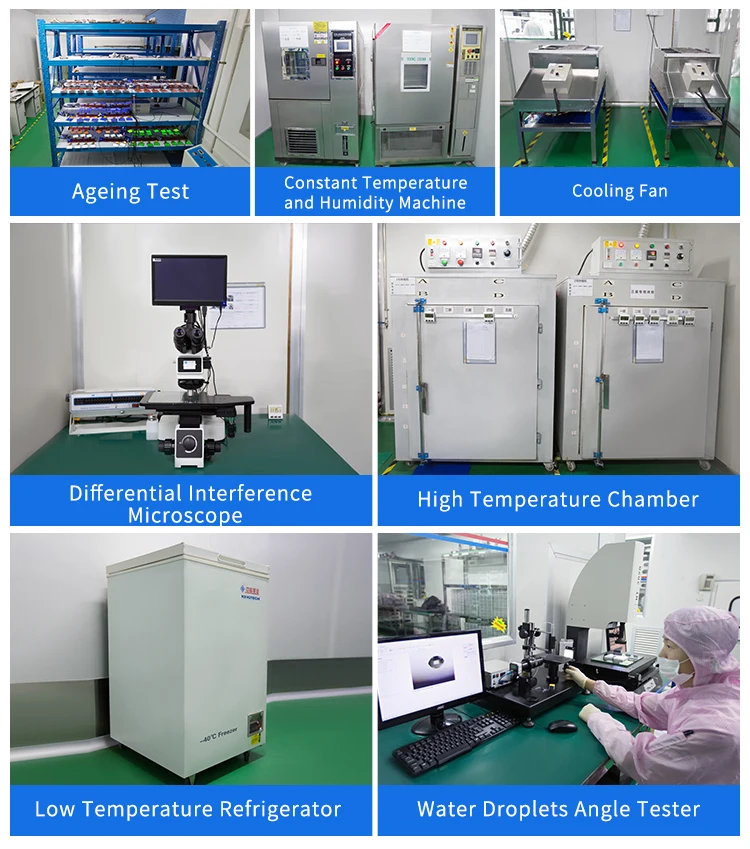

For every new model, before mass production, we do reliability test to ensure our material choice and our workmanship are designed properly.

This can help to avoid reliability issues happening at our customer side




ips touch screen320x240 tft lcd display 2.4

Other product products, please click below Model No to review product details



Size and FeatureModel NoPixelOutline Dimension
1.3'' Round AMOLEDPV013002T45B360*36035.34(W)*36.84(H)*0.678(T)
1.39"Round AMOLEDPV013901PY20B400*400  38.6 (W)×40.5(H)×0.7(T)
2.4" IPS TFT LCDPV0241F2CZ0_V00240*32042.72(W)*60.7(H)*2.21(T)
3.34'' Round TFT LCDPV033400AR17A320*32066.20(W)×69.30(H)×2.66(T)
3.5" IPS/Free viewing anglePV0350B2Z10320*48053.76(W)*84.18(H)*3.30(T)
3.5" 480*640 TransflectivePV03501LZR40C480*64063.00(W)×85.00(H)×2.9(T)
4.0" IPS/Free viewing anglePV0401FT25B480*80057.14(W)* 96.85(H) *1.93(T)
4.3" high brightnessPV043WQ-CTNC4001480*272105.5(W)*67.1(H)*2.95 (T)
4.3"  IPS/Free viewing anglePV04300FT40C480*80061.46(W)*104.75(H)*2.20
5.5''  IPS/Free viewing anglePV05502FT39D720*128076.8(W) * 137.4(H) * 2.7(T)
10.1" 1000nits IPS/free viewingPV10101LZR40B-C1280*800229.80(W)*149.00(H)*5.95(T)
RemarkODM and OEM are welcome
